xx Re: Nose removal - how ?
« Reply #15 on: May 12th, 2009, 8:42pm »

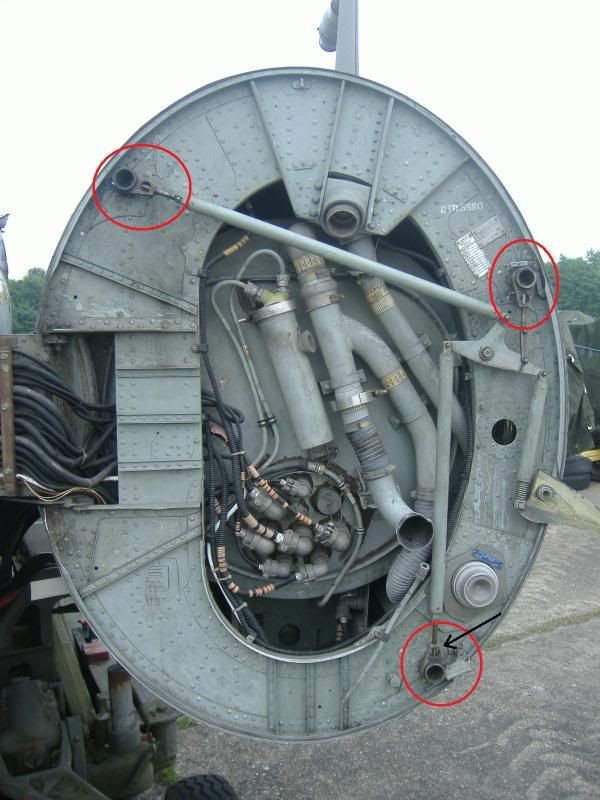

The nose section is held shut at three points (circled in red). Do not be surprised if the locking pins (Iíve marked one of them with a black arrow) are seized solid. Iíve spent hours and hours trying to open these before and the operating lever tends to break before the locking pins release so please be warned!

User Image

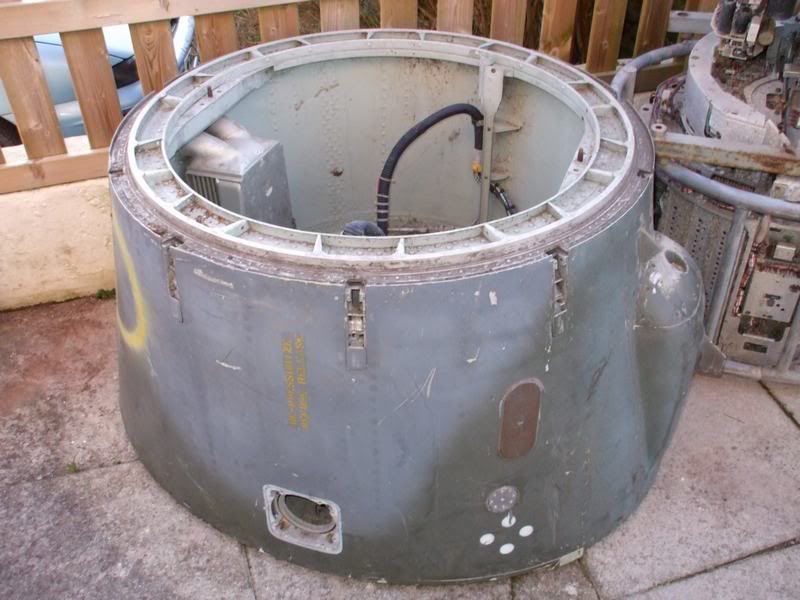

The whole unit weighs approximately 40 to 45kg.

User Image
« Last Edit: May 12th, 2009, 8:43pm by Plazz » User IP Logged

XM692
Full Member


member is offline

Avatar




PM


Posts: 13
xx Re: Nose removal - how ?
« Reply #16 on: May 12th, 2009, 9:10pm »

on May 12th, 2009, 8:42pm, Plazz wrote:
..... Iíve spent hours and hours trying to open these before and the operating lever tends to break before the locking pins release so please be warned!


If it breaks, whats the solution ?

Stihl saw ?



.
« Last Edit: May 12th, 2009, 9:11pm by XM692 » User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Nose removal - how ?
« Reply #17 on: May 12th, 2009, 9:31pm »

on May 12th, 2009, 9:10pm, XM692 wrote:
If it breaks, whats the solution ?

Stihl saw ?



.



It all depends on how much time and effort you want to spend
and also what damage your prepared to inflict on the airframe?
Patience, tonnes of WD40 etc. might do the job and you'll be able to
Re-assemble it all again, whereas a Stihl saw will definitely do the job
but make it difficult to go back together and I understand from Tim that
It is all going back in one piece!?
Hopefully you will be lucky and it won't put up to much of a fight!!
« Last Edit: May 12th, 2009, 10:23pm by Plazz » User IP Logged

XM692
Full Member


member is offline

Avatar




PM


Posts: 13
xx Re: Nose removal - how ?
« Reply #18 on: May 15th, 2009, 11:46am »

Plazz,

Thanks but on the contrary Tims plans do not include the nose sections or anything below cockpit floor level, hence today i attempted to move the lever without luck. Tugging at it with a 5 ton HiAB only broke the mechanism (seized as you predicted), so using a WMD the pins were cut.

Maybe someone could use the external panels along the lower sides ?

User Image
User Image
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Nose removal - how ?
« Reply #19 on: May 15th, 2009, 12:11pm »

on May 15th, 2009, 11:46am, XM692 wrote:
Maybe someone could use the external panels along the lower sides ?


PM on its way to you!
User IP Logged

XT284
Full Member


member is offline

Avatar




PM

Gender: Male
Posts: 15
xx Re: Nose removal - how ?
« Reply #20 on: May 15th, 2009, 7:03pm »

XM692

I could make use of the panels and body work for XT284, as this is the section that I need to re skin.

Cheers Glenn XT284
User IP Logged

Goosey
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 61
xx Re: Nose removal - how ?
« Reply #21 on: May 16th, 2009, 07:48am »

just goes to show 12 stone flm,s were made of sterner stuff than 5 ton hiab,s
User IP Logged

XM692
Full Member


member is offline

Avatar




PM


Posts: 13
xx Re: Nose removal - how ?
« Reply #22 on: May 16th, 2009, 07:55am »

To the people who've requested panels & parts, i'll get back to you asap, but Plazz was first to enquire so i feel duty bound to await a reply from my PM to him.


Cheers....
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Nose removal - how ?
« Reply #23 on: May 16th, 2009, 09:14am »

Thanks Dave,

New PM just sent!
User IP Logged

buccaneer01
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 127
xx Re: Nose removal - how ?
« Reply #24 on: May 16th, 2009, 2:11pm »

I take it this cockpit is being scrapped then?
User IP Logged

Long live the Buccaneer
XM692
Full Member


member is offline

Avatar




PM


Posts: 13
xx Re: Nose removal - how ?
« Reply #25 on: May 16th, 2009, 4:03pm »

No, just being reduced to floor level and nose less in accordance with the owners wishes (as per XN979 at Doncaster).

Cheers....
User IP Logged

XT284
Full Member


member is offline

Avatar




PM

Gender: Male
Posts: 15
xx Re: Nose removal - how ?
« Reply #26 on: May 17th, 2009, 08:42am »

XM692

Thanks for your reply. Please let me know if any parts become spare . I have checked my shed and I have most of the panels, but XT284 had a large section of skin removed during it's BDR time. This is on the port side around the 2 smaller panels next to the nose fold hinge, and any bits from this area will be a great help.

Cheers Glenn
« Last Edit: May 17th, 2009, 1:16pm by XT284 » User IP Logged

XT284
Full Member


member is offline

Avatar




PM

Gender: Male
Posts: 15
xx Re: Nose removal - how ?
« Reply #27 on: May 14th, 2011, 08:24am »

has this nose section been reduced yet?

Cheers

Glenn
User IP Logged

XM692
Full Member


member is offline

Avatar




PM


Posts: 13
xx Re: Nose removal - how ?
« Reply #28 on: May 17th, 2011, 05:50am »

Yes, the owner asked one of his employee's to do the deed. Cut line just needs tidying up...
.
User Image
User IP Logged

XT284
Full Member


member is offline

Avatar




PM

Gender: Male
Posts: 15
xx Re: Nose removal - how ?
« Reply #29 on: May 17th, 2011, 8:03pm »

Hi XM692

Thanks for the update. Did any bits get saved? I am still trying to get some spares for XT284's body work. The small sockets to hold the panels in place would be very useful.

Cheers
Glenn

User ImageUser Image
