xx Buccaneer SMk1 XN964 - Progress
« Thread started on: Apr 24th, 2007, 8:13pm »

I have been in contact with the sectary of the Newark Air museum today regarding the restoration of their Buccaneer SMk1 XN964.
The museum approached me earlier asking for some help with the canopy operation on their Bucc, which I have now supplied.
Hopefully this information will be enough to allow them access to the cockpit to complete the refurbishment!

Details of the current restoration can be found here:

http://www.military-airshows.co.uk:80/press06/newarkbuccprapr07.htm

Plazz
« Last Edit: May 30th, 2007, 7:32pm by Plazz » User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Buccaneer SMk1 XN964
« Reply #1 on: Apr 24th, 2007, 9:25pm »

I saw something about this on UKAR earlier on, cannot confirm either way as to whether the S.1 & S.2 operations are the same, my one and only S.1 Vol 1 has been sold on, this would have given them everything they need to know.
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx The Grand Opening!
« Reply #2 on: May 2nd, 2007, 7:40pm »

Success!

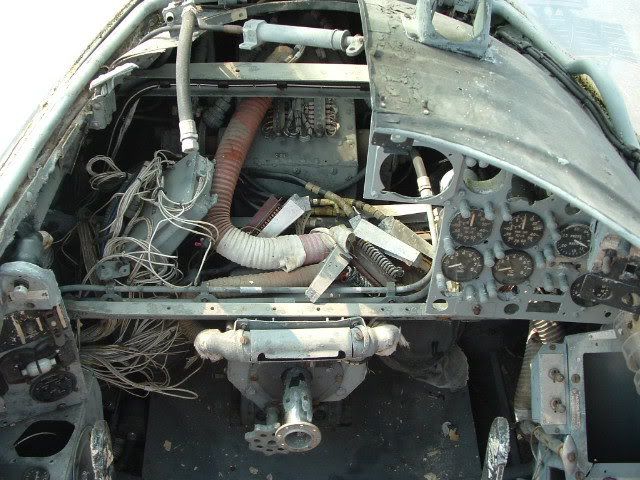

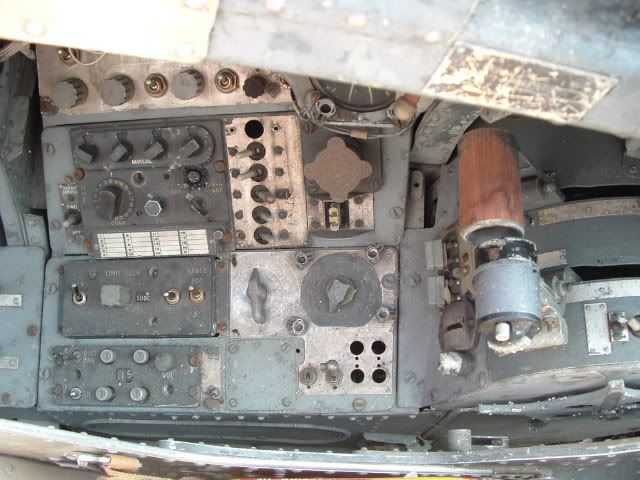

The Buccaneer team at the Newark Air Museum have managed to gain entry in to the cockpit of XN964 after some 15 years since it was last closed shocked
Although the cockpit and seats are quite heavily stripped, the plan is to complete the restoration both internally as well as externally.

Well done to all involved!

User Image

User Image

User Image

All photographs, Mick Coombes ©
« Last Edit: May 2nd, 2007, 7:46pm by Plazz » User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Buccaneer SMk1 XN964
« Reply #3 on: May 2nd, 2007, 8:06pm »

I am glad to see that the guys are finally getting to grips with 964, if past restorations are anything to go by, then she will be a beauty.

User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk1 XN964
« Reply #4 on: May 9th, 2007, 8:39pm »

I would like to say a big thank you to Mick Coombes for his kind hospitality at the Newark Air Museum yesterday.

Mick is part of the small team currently working on the restoration of their Buccaneer S.Mk.1 and kindly took time out to give me a personal guided tour of the work done so far.

Thanks Mick!

Mick along with XN964…
User Image


Further photos of XN964 can be seen over on the Survivors thread.

http://buccsociety.conforums.com/index.cgi?action=display&board=general&num=1139322785&start=45

Francis
« Last Edit: May 10th, 2007, 6:52pm by Plazz » User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Restoration update from 14-05-07
« Reply #5 on: May 28th, 2007, 8:15pm »

In Mick’s Coombe's own words…

Work on the Bucc last week consisted of filling and finishing two tears/holes in the port nose section, removing the seized canopy shuttle chain, cleaning the insides of the cockpit and nav's screen (for the FIRST time) and carrying on the surface rubbing down. We even had four people working on her at the same time!

Jobs this week include positioning our "Giraffe" to give us access to the tail plane at last.
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Restoration update from 25-05-07
« Reply #6 on: May 28th, 2007, 8:19pm »

Again, in Mick Coombes’s own words…

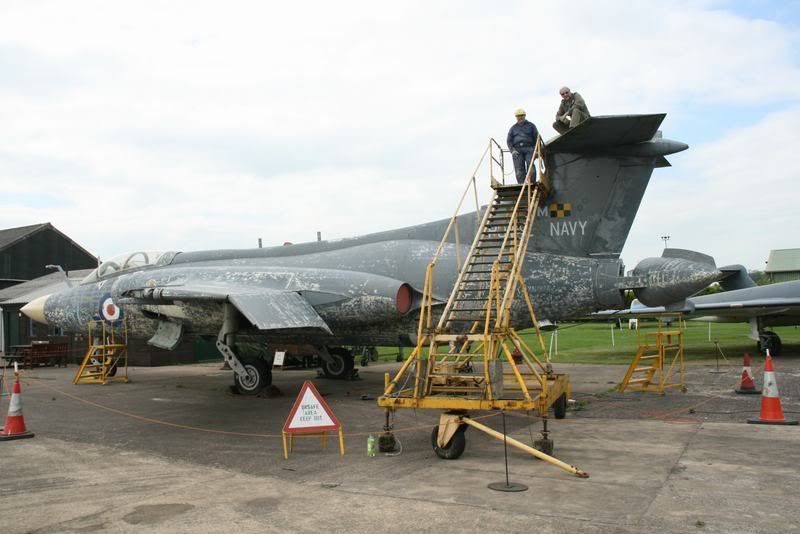

On our Bucc, we have moved our "giraffe" into place, and started rubbing down the tail plane.
I intend to start undercoating next week...

1. Men at the top.
User Image

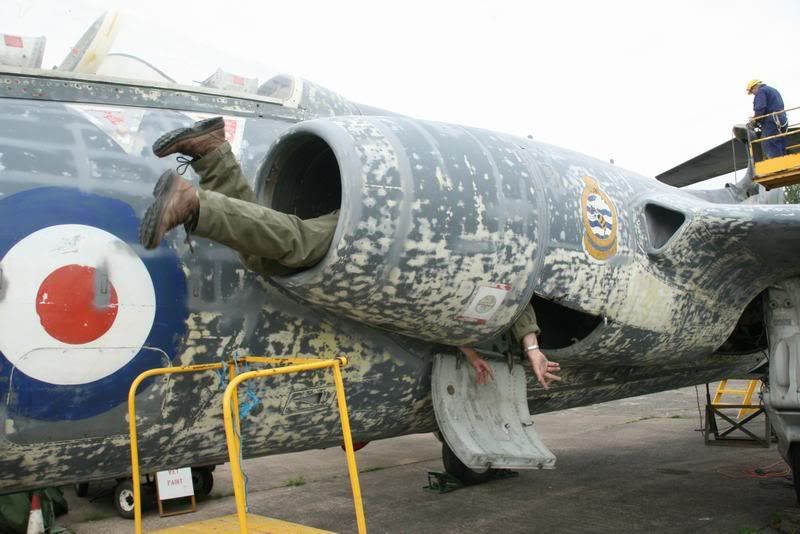

2. Shouldn't there be an engine in here?
User Image
« Last Edit: May 28th, 2007, 8:21pm by Plazz » User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Buccaneer SMk1 XN964
« Reply #7 on: May 28th, 2007, 9:21pm »

Good to see that the team are having fun restoring the old bird.

I bet Mick will be glad once he has his NEW access ladder.
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk1 XN964 - Progress
« Reply #8 on: Jun 13th, 2007, 7:47pm »

And so the painting begins smiley

Mick has been hard at work on XN964 with the application of the first coat of primer.

In Mick’s own words…

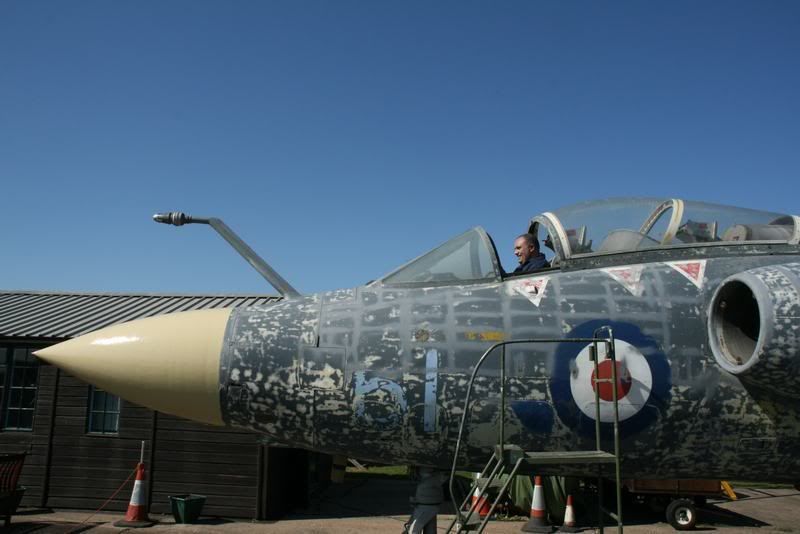

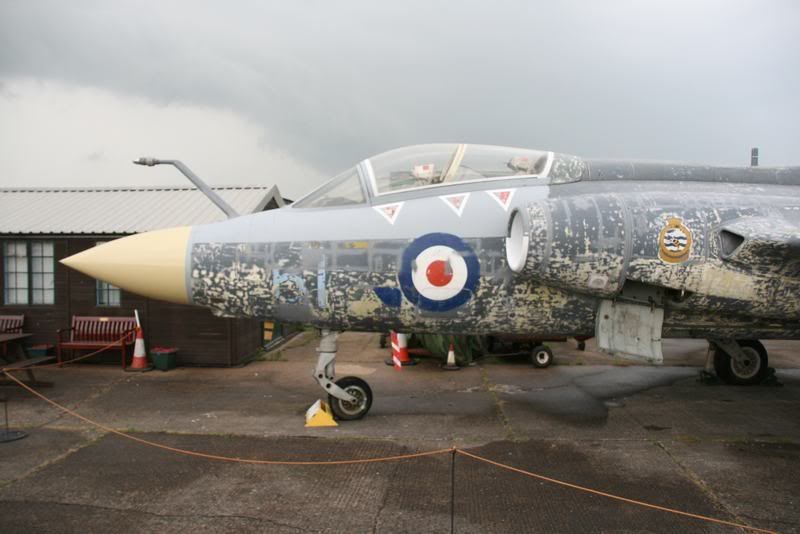

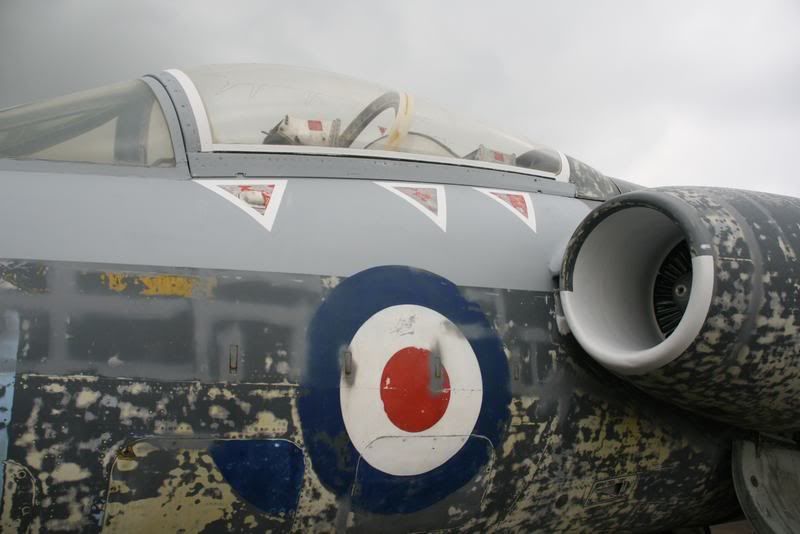

I managed to get some grey primer on the nose on Sunday, showing the high demarcation line of the extra dark sea grey, but was frustrated by not being able to find any white undercoat to paint the intake interiors.

I bought and cut out the strengthening backing plates for the dummy engine fronts and purchased my own white primer/undercoat yesterday, and set off with big plans for today.

On arrival, I prepped and masked the port intake, and got on a coat of undercoat on. I masked the three danger ejection triangles and canopy edging and painted these. It rained.

During the shower, I took the engine front, strengthening plate and engine bullet into the workshop. With a little help, I had the engine front lined up, drilled and assembled. Now for a dummy run, and IT FITS!

After dinner, I put on second coats of undercoat on the intake, Triangles and canopy and removed all the masking.

Some pics...
User Image

User Image

User Image

This is one Bucc that’s going to look stunning when its finished.
Thanks for the update and Keep up the good work Mick

Plazz
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Restoration update from 25-07-07
« Reply #9 on: Jul 26th, 2007, 9:41pm »

At Newark we've been pressing on. All the upper surfaces, as far back as the fin, are grey primed. On Tuesday. we started to put the white undercoat on the port fuselage. It was so hot that the paint was drying very quickly. We put two coats of undercoat on the port nose back to the undercarriage bay. After a lunch break, we decided to put on a third, thinned coat to give the cover we need. Now we know lies ahead. We even managed two coats on the port aileron and flap.

User Image

User Image

All photographs and by text Mick Coombes ©

Thanks once again for the update Mick, she’s looking great already. Nice ladder by the way wink

Plazz

« Last Edit: Jul 26th, 2007, 9:46pm by Plazz » User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Restoration update from 25-07-07
« Reply #10 on: Jul 26th, 2007, 9:56pm »

on Jul 26th, 2007, 9:41pm, Plazz wrote:
Thanks once again for the update Mick, she’s looking great already. Nice ladder by the way wink

Plazz



The ladder will look even better once it has been painted red grin

On a serious note, Mick and the team are doing sterling work on 964 and if any of you chaps go up to Newark for a visit, please make a beeline for the aircraft and if Mick and the lads are about, a think a huge pat on the back would be in order.
« Last Edit: Jul 26th, 2007, 9:57pm by Buccsociety » User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk1 XN964 - Progress
« Reply #11 on: Sep 14th, 2007, 7:43pm »

Just a quick update on XN964 by Mick Coombes.

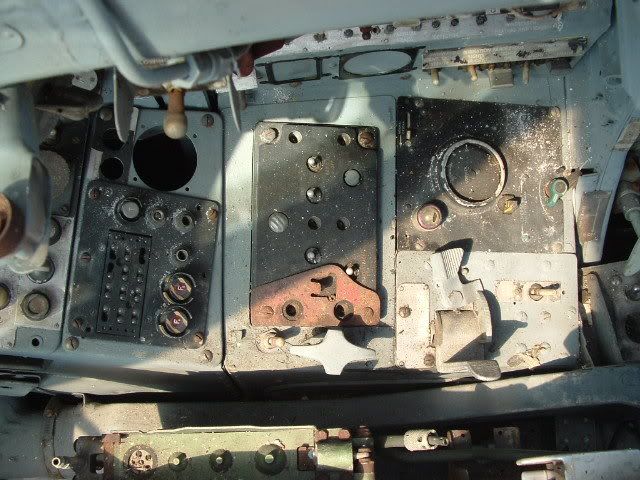

We finished the priming of all of the port side of the aircraft today, and that leaves us with just the inboard starboard under wing, starboard fin, rudder and tail plane underside to do. Now that the front seat is out I have given the cockpit a good clean out and removed panels for restoration. We've obtained several missing instruments, but still need strip airspeed indicator and radio altimeter, and, of course, a pilot's hand grip (control column)

We're going to replace the back seat with a better one from the museum's collection, so we will need to remove the canopy!

User Image

User Image

Thanks for the update Mick!

Plazz
User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Buccaneer SMk1 XN964 - Progress
« Reply #12 on: Oct 3rd, 2007, 08:01am »

Mick has just sent in this awesome night shot of XN964, which was taken during September.

User Image
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
Dumb swede
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 58
xx Re: Buccaneer SMk1 XN964 - Progress
« Reply #13 on: Oct 3rd, 2007, 6:25pm »

Wow thats a great pic cheesy
User IP Logged

Dumb swede
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 58
xx Re: Buccaneer SMk1 XN964 - Progress
« Reply #14 on: Oct 3rd, 2007, 6:58pm »

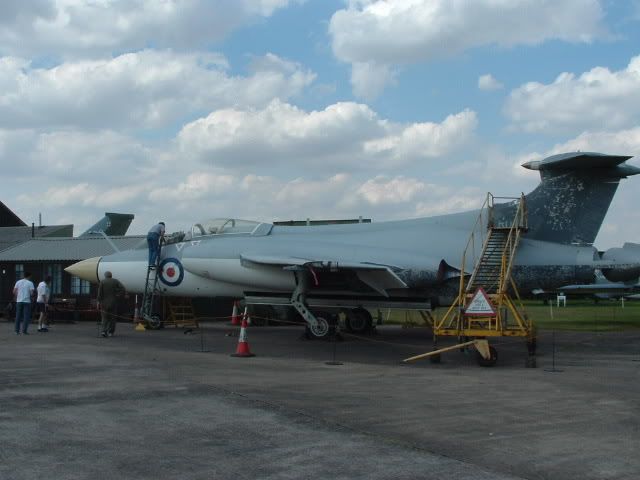

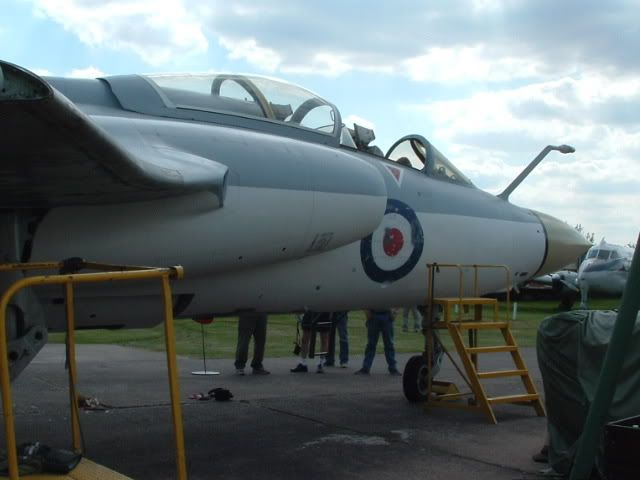

Heres some pictures I took off XN964 in the middle of August User Image
User Image
User Image
User Image
User Image
User Image
User Image
User Image
User Image
User Image
User Image
