xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #60 on: Dec 23rd, 2009, 7:42pm »

Is the tank getting welded or or you going to raid the other speys again for a replacement, whats the timescale of getting it back together then
User IP Logged

matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #61 on: Dec 23rd, 2009, 7:44pm »

and is the owner still around i wouldn't mind helpin out returning the a\c to its 15 sqn colours with the grey underside

actually i find it quite theraputic painting in the hanger now the tin triangle has gone
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #62 on: Dec 23rd, 2009, 7:47pm »

The tank is coming from one of the scrap Spey’s. The fuel jets have all been removed and are waiting pressure testing. Once done, the whole thing will be re-assembled and then ground run. All being well the Spey will be in 544 by February/March.
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #63 on: Dec 23rd, 2009, 7:48pm »

on Dec 23rd, 2009, 7:44pm, matt wrote:
and is the owner still around i wouldn't mind helpin out returning the a\c to its 15 sqn colours with the grey underside

actually i find it quite theraputic painting in the hanger now the tin triangle has gone


Whats the lighting like in there for painting? Is it bright enough?
User IP Logged

matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #64 on: Dec 24th, 2009, 08:53am »

Once you've had the lights on for 5 mins it's plenty bright enough, the only issue is the temp as i think it got to just under 10 deg the only thing i had problems with is that it take slightly longer for each coat to go off, however two pack and spraying might be different, however just rollering on makes a lot of difference especialkly is it is one colour ie grey undersides on 544

do you still have contact with 544's official owner then
User IP Logged

matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #65 on: Dec 24th, 2009, 08:55am »

been told end of feb as possible chuck out of the hanger date !!!
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #66 on: Jan 2nd, 2010, 8:52pm »

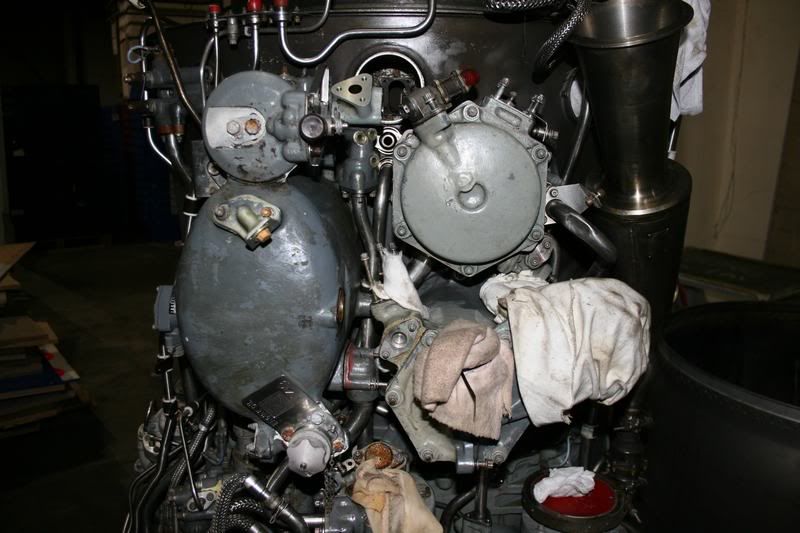

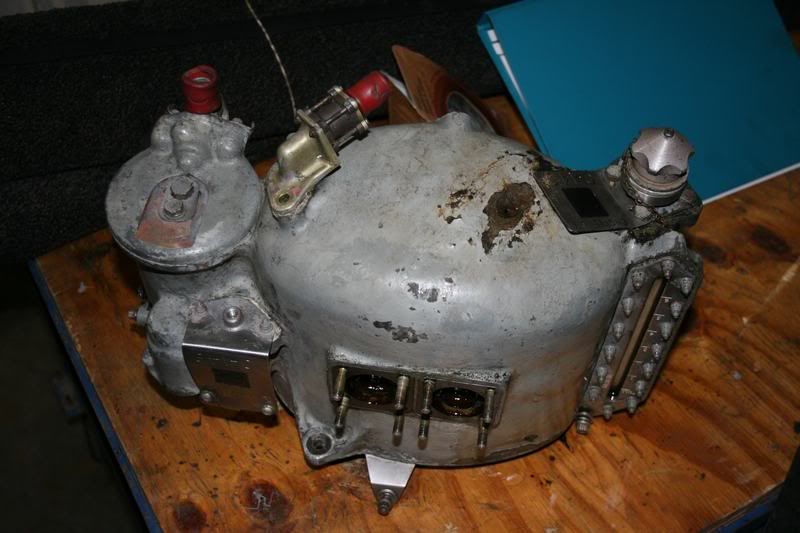

The damaged oil tank has now been removed…

User Image

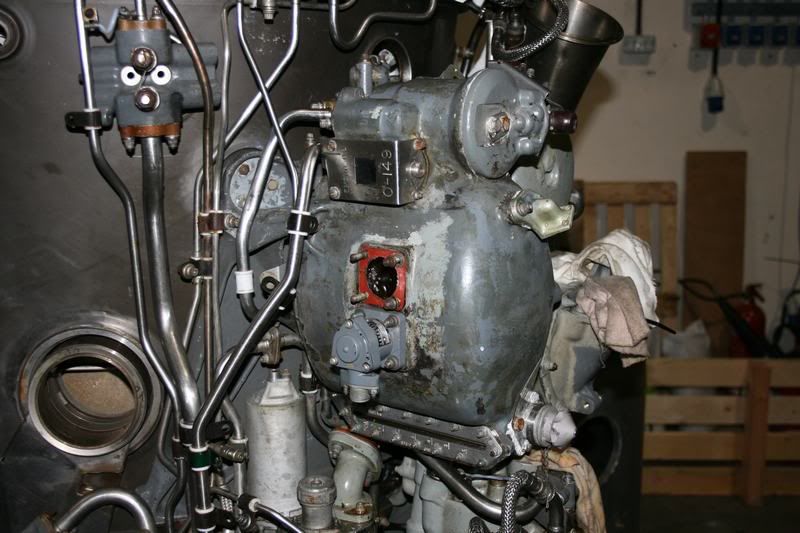

And the new one fitted…

User Image

User Image

All that remains now is to get all of the pipe work re-installed!

Also, the fuel jets were successfully pressure tested today and these will hopefully be installed next weekend. After that, the rear casing will be fitted and the engine put back in the stand ready for ground running smiley
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #67 on: Jan 2nd, 2010, 8:56pm »

on Dec 24th, 2009, 08:53am, matt wrote:
do you still have contact with 544's official owner then


Yes, although he rarely makes an appearance in person cry
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #68 on: Feb 28th, 2010, 8:00pm »

XW544’s starboard engine rebuild is almost complete. The engine was put back on its stand last weekend and now only needs a few ancillary items fitting prior to test runs taking place in the next few weeks!

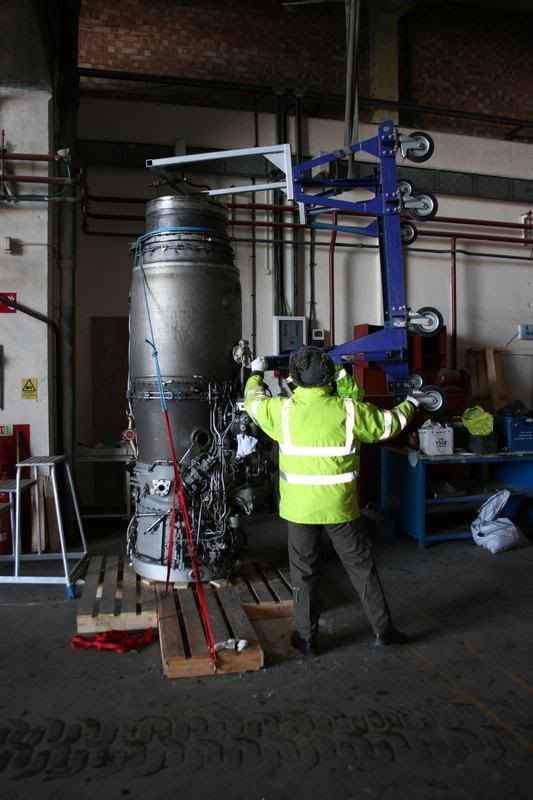

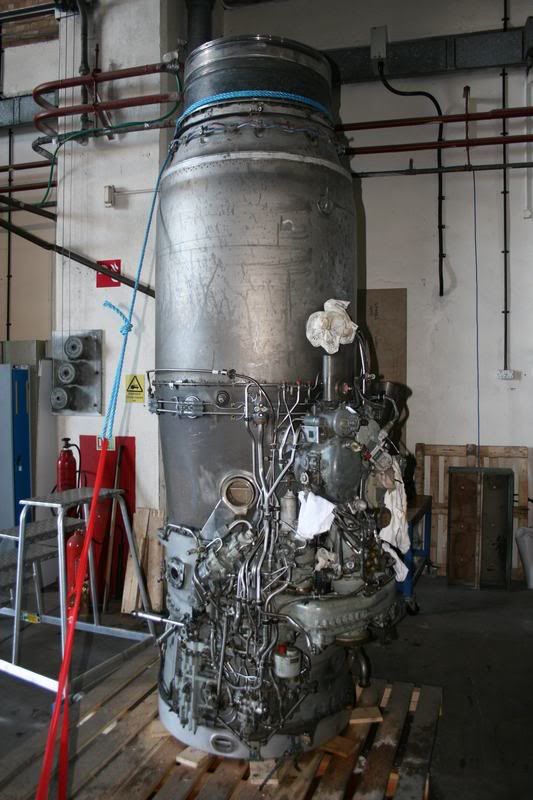

Still in the vertical…
User Image

Stand being moved in to position…
User Image

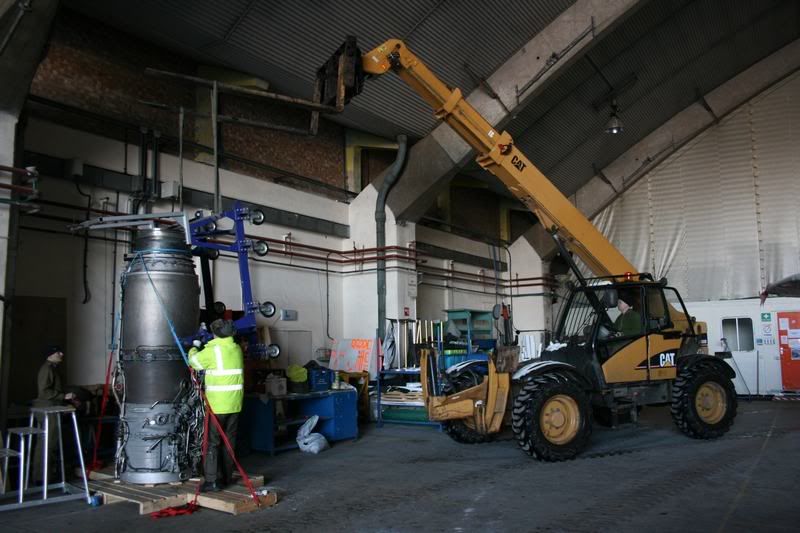

Cat in position…
User Image

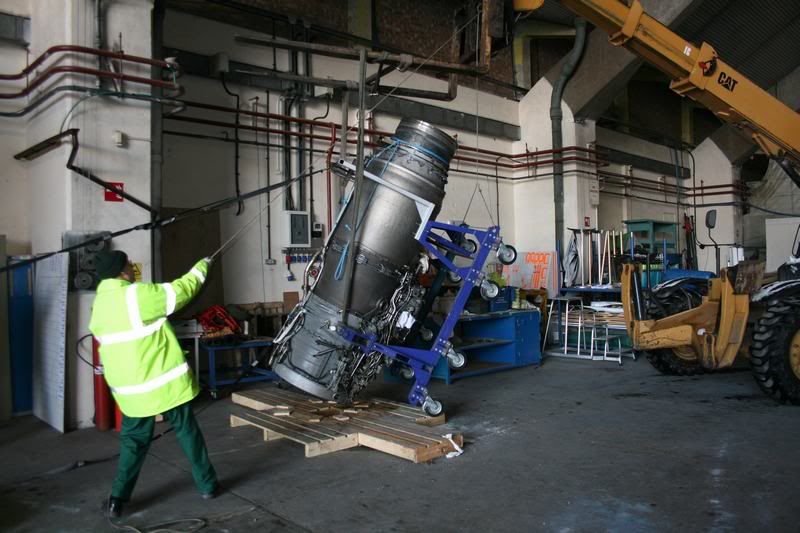

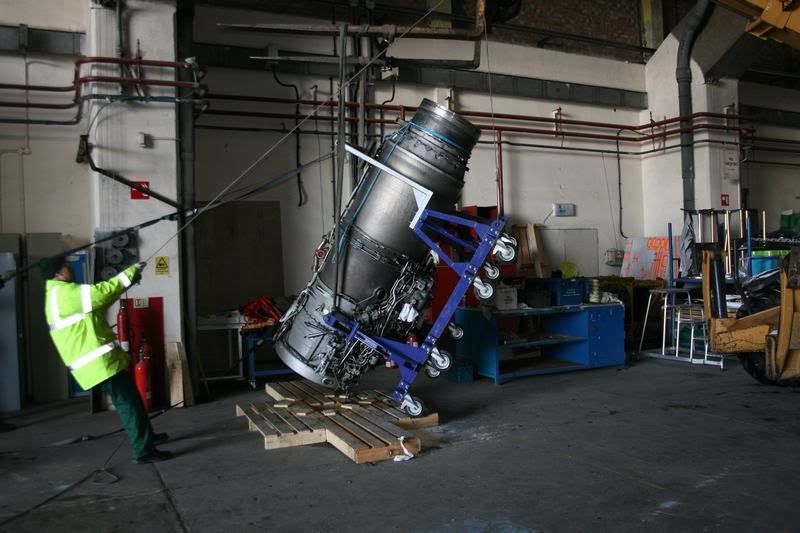

Over she goes…
User Image

Dave controls the speed of the Spey back down to terra firma…
User Image

User Image

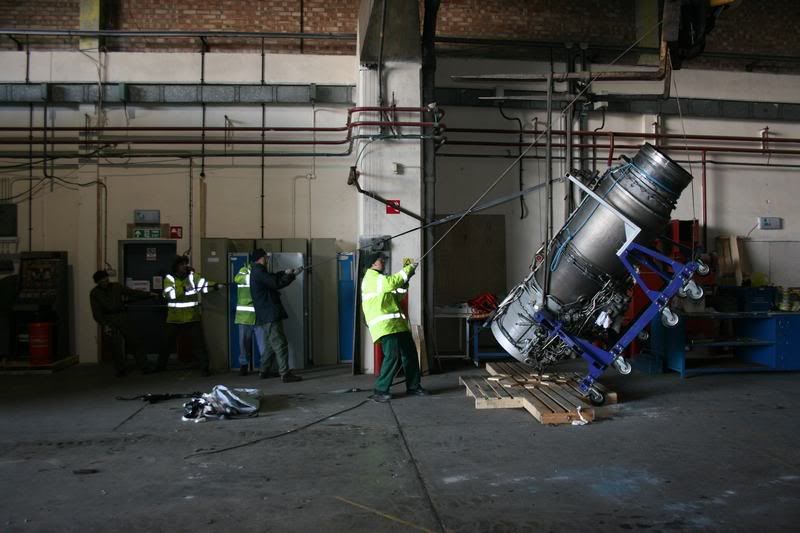

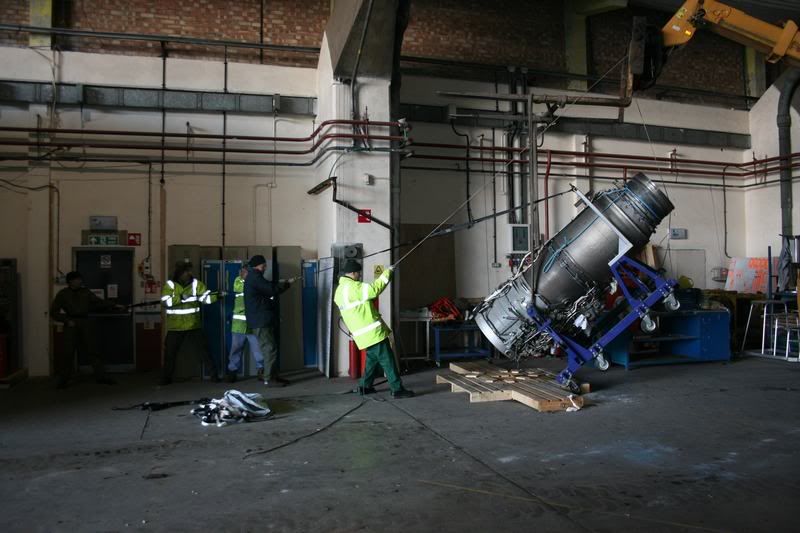

The rest of the team takes the strain of a 1.5 ton Spey…
User Image

User Image

Nearly there…
User Image

User Image

User Image

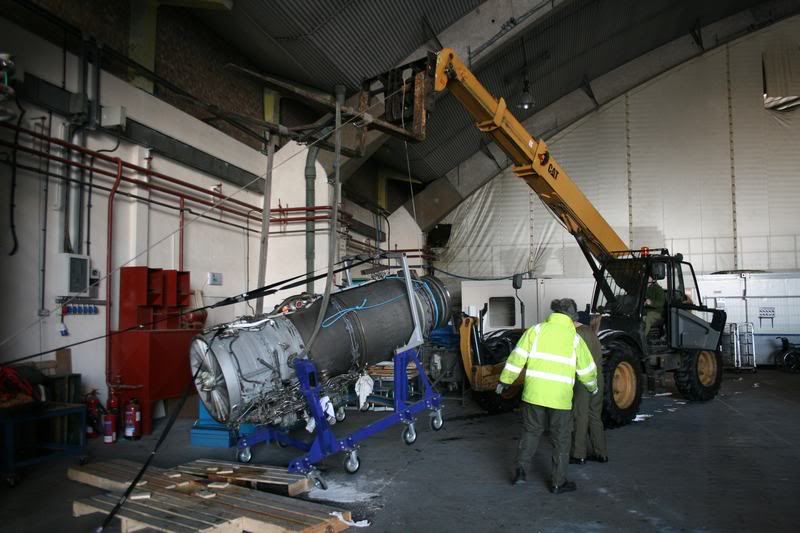

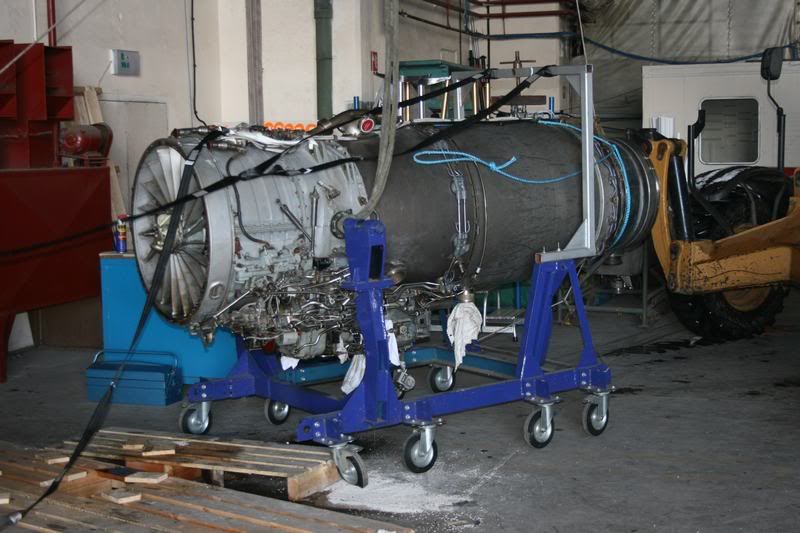

Safely down…
User Image

All being well the Spey will be ground run during March or April!
« Last Edit: Feb 28th, 2010, 8:02pm by Plazz » User IP Logged

XV867
God


member is offline

Avatar




PM

Gender: Male
Posts: 247
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #69 on: Feb 28th, 2010, 9:59pm »

Good work guys great to see progress on 544..

Hugh.
User IP Logged

http://www.highlandaviationmuseum.co.uk/index.htm
buccaneer01
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 127
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #70 on: Mar 8th, 2010, 12:28am »

Terrific progress on the engine rebuild.. Has there been a definate date of hangar departure set?
User IP Logged

Long live the Buccaneer
AndrewW
New Member


member is offline

Avatar




PM


Posts: 3
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #71 on: Mar 8th, 2010, 8:18pm »

that 3-ship gets ever closer smiley
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #72 on: Mar 8th, 2010, 8:25pm »

on Mar 8th, 2010, 12:28am, buccaneer01 wrote:
Terrific progress on the engine rebuild.. Has there been a definate date of hangar departure set?


Nothing definite yet but the end of March is the date everyone is working to!
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #73 on: May 2nd, 2010, 4:46pm »

Well we didn’t quite make March or April for the first ground run but May 1st is not too bad I guess!

XW544’s refurbished starboard Spey was ground run several times yesterday and on the whole it was a complete success! Unfortunately regardless of how the thermocouples were connected we kept getting erroneous turbine gas temperature readings? All very frustrating!

The engine performed very well and the thermocouples will be examined in closer detail over the coming weeks prior to fitting the engine in to 544 some time shortly after the open day.

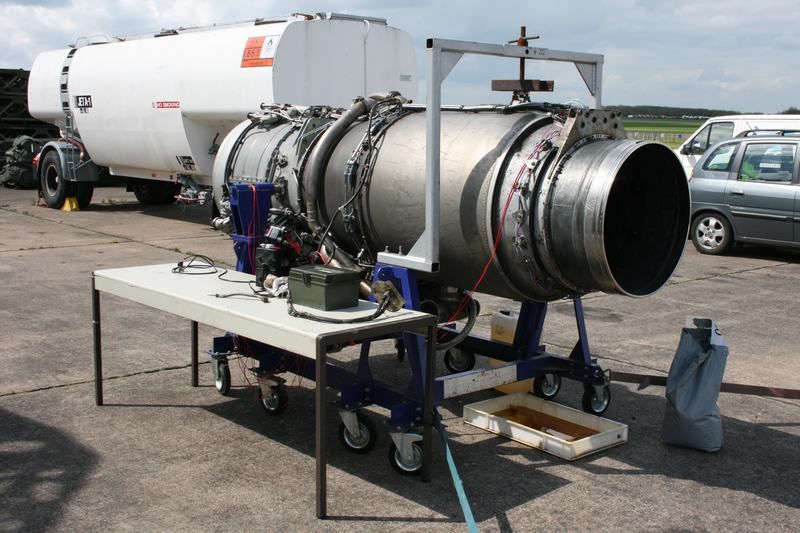

Spey 101…
User Image

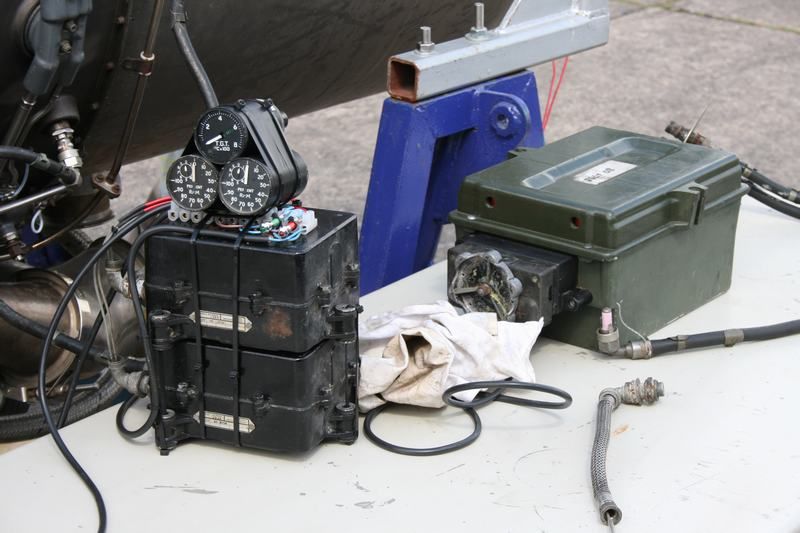

I knocked up a small starter unit complete with gauges and oil pressure lights…
User Image

More of the Spey...
User Image

User Image

Below is a short video of two of the runs. The first part of the clip shows the engine being shutdown due to the erroneous temperatures being seen on the gauge. The second part of the clip shows a wet start. Prior to this particular run the engine ran out of fuel so it was necessary to purge new fuel through prior to firing the igniters. If nothing else it provided a more spectacular start!

http://s44.photobucket.com/albums/f39/plazzdaman/Bucc/XW544%20Videos/?action=view¤t=EngineRun.flv

A well deserved pat on the back to Dave and Graham for all their hard work in repairing the engine over the winter months.

The mouth watering prospect of three Buccaneers on the move looms ever closer!
User IP Logged

XV867
God


member is offline

Avatar




PM

Gender: Male
Posts: 247
xx Re: Buccaneer SMk2B XW544 - Progress
« Reply #74 on: May 3rd, 2010, 11:18pm »

Great stuff chaps..well done.

Hugh smiley
User IP Logged
