xx Sea Vixen FAW.2 XJ494 - Progress
« Thread started on: Oct 3rd, 2007, 7:46pm »

A thread especially for our friends at Bruntingthorpe who look after Sea Vixen XJ494.
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #1 on: Oct 6th, 2007, 10:42am »

Images to follow

So far progress has concentrated on getting the AC power system operative as the last functional check revealed an inverter catching light the 112 and 108 have been stripped and run up on the bench all looks well

the type 103 are a bit more problematic with bad pitting corrosion and seizure of the main bearings
on strip they also have worn motor brushes so we've on the look out for any

Hopefully next summer a repaint and work on the hydraulic system will get started and then the Avon's after that

Matt Wainwright
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #2 on: Oct 19th, 2007, 8:08pm »

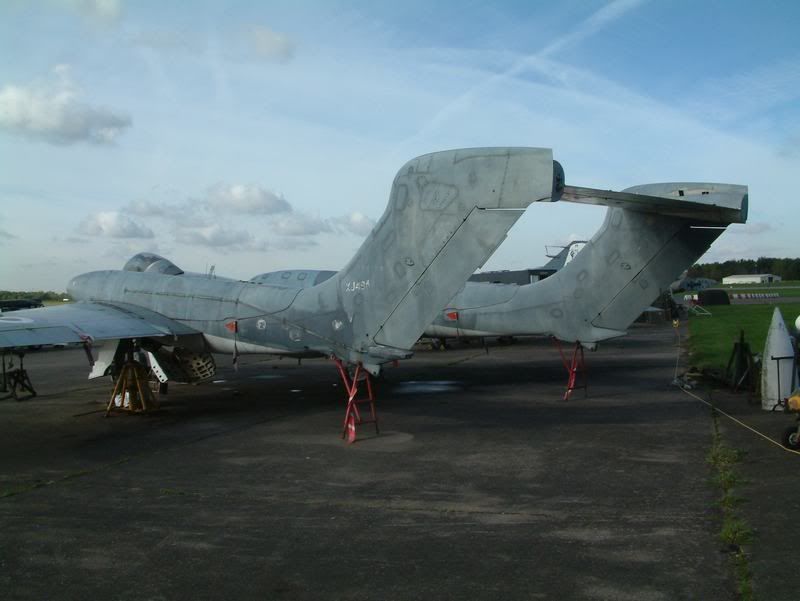

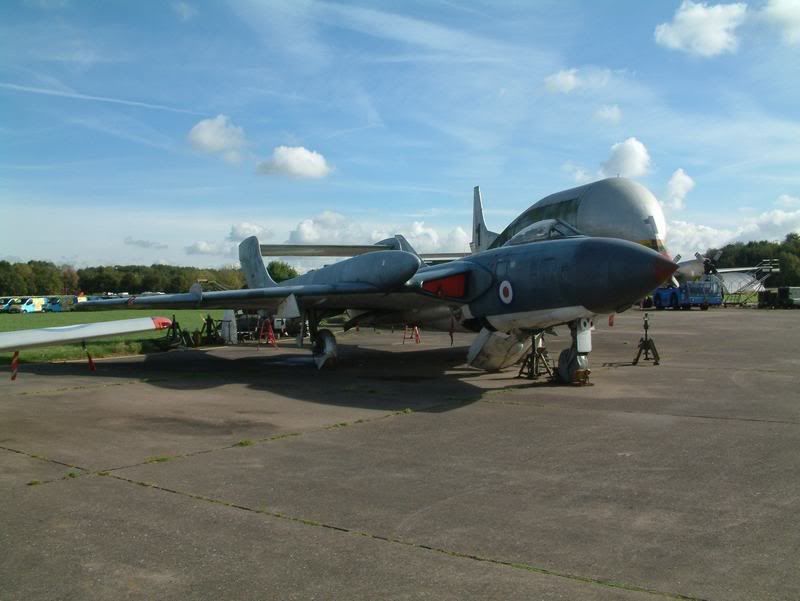

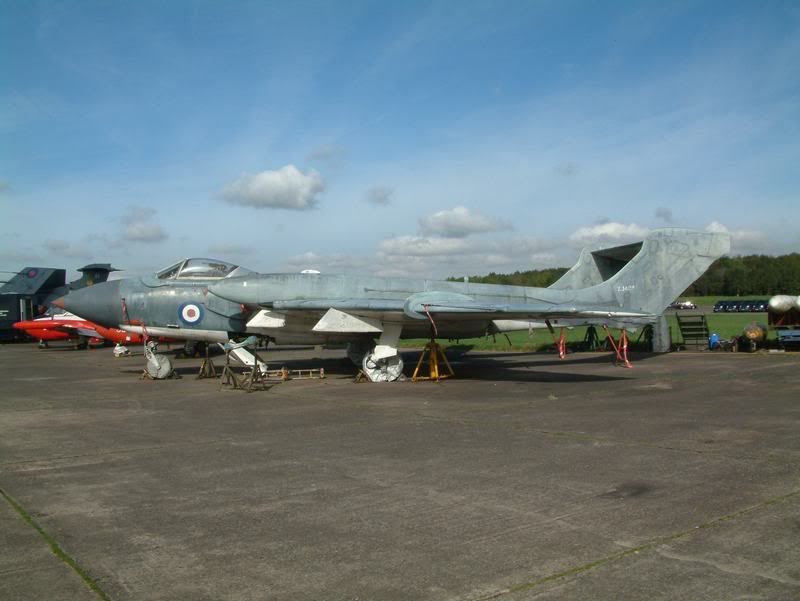

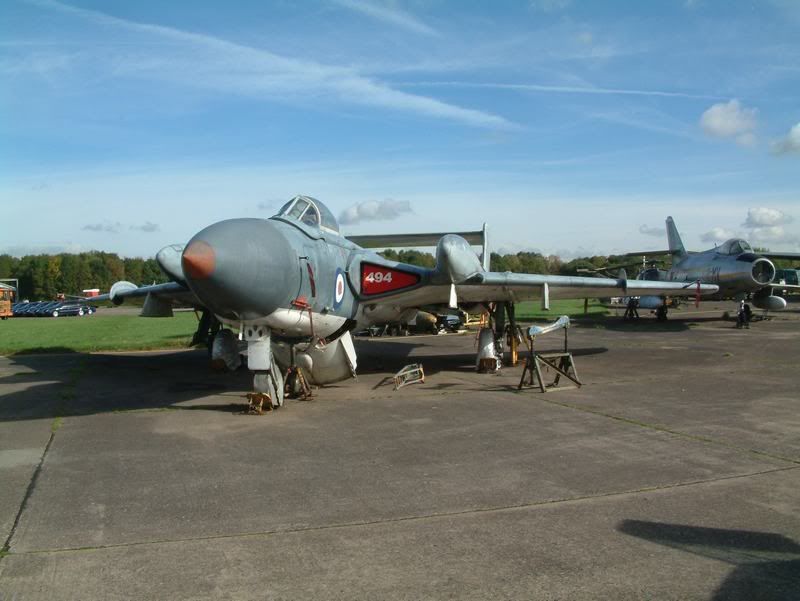

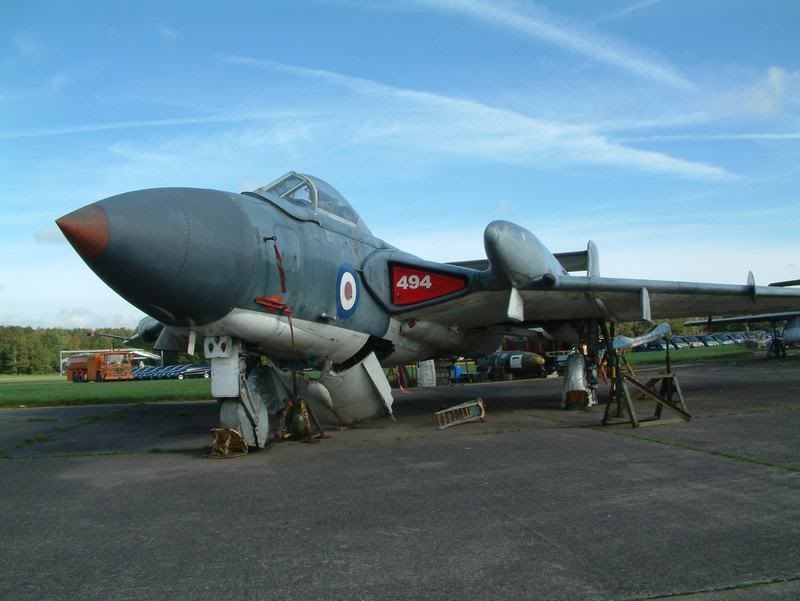

Hopefully no one will mind me barging in on this thread, but both myself and Nigel feel that it desperately needs some pictures, so with that in mind I grabbed a few shots yesterday…

User Image

User Image

User Image

User Image

User Image

User Image

Hopefully some more updates will follow soon?

Francis
User IP Logged

matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #3 on: Oct 20th, 2007, 09:57am »

Thank for that with me off at RAF cosford on a course i've not had time to tend to 494 needs for a bit, hopefully colin has tee'd up someone to get the nose shock absorber out so we can get new seals in if anyone out there knows the whereabout off a nose wheel fork we might be in need of one as uncle corrosion is having a go at the one fitted
User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #4 on: Oct 22nd, 2007, 08:32am »

on Oct 20th, 2007, 09:57am, matt wrote:
if anyone out there knows the whereabout off a nose wheel fork we might be in need of one as uncle corrosion is having a go at the one fitted


Have you asked Colin what happened to the 30 tons or so of Vixen spares that he had stored in his barn?

Failing that, could be worth asking Bruce Gordon from the De-Havilland Museum (can be found via Key Publishing Forum under username: Bruce), to see if he can find one, bit of a long shot though.

How bad is the fork?
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #5 on: Oct 22nd, 2007, 12:21pm »

Quote:
Have you asked Colin what happened to the 30 tons or so of Vixen spares that he had stored in his barn?


The spares have now all gone to Bournemouth.

Francis
« Last Edit: Oct 22nd, 2007, 12:22pm by Plazz » User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #6 on: Oct 22nd, 2007, 12:29pm »

on Oct 22nd, 2007, 12:21pm, Plazz wrote:
The spares have now all gone to Bournemouth.

Francis


Then there is first port of call, speak to PK and see what he says.
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #7 on: Oct 26th, 2007, 4:13pm »

PK has already been great however the serch for a fork continues

he is helping us alot on other fronts thou

as soon as the shock absorber is off we have the spares to fix the seals, it's just finding the time to get it off fix it and put it back on having the nose on a jack for a lot of time might not be wise in the harse brunty enviroment

although i've been today and shes still high and dry

Matt
User IP Logged

chrisw
Full Member


member is offline

Avatar




PM


Posts: 14
thumbup Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #8 on: Oct 28th, 2007, 11:09am »

hi just to introduce myself,my name is chris i'm matts brother and i'm involved in restoring 494 to running order.my main task up to now has involved full recon of the inverters which when removed were all found to be solid with corrosion.now working on the last 103 now,the 108 and 112 are fully working and tested ready to reinstall,first 103 is undergoing test now second is stripped ready for recon.once ready all will be fitted back to 494 and full electical tests run.also i have refurbed and tested the wingtip nav lights.will try and keep you all updated and put up pics.
« Last Edit: Oct 28th, 2007, 11:11am by chrisw » User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #9 on: Oct 28th, 2007, 3:35pm »

Thanks for the update Chris, and welcome to the forums.

Plazz
User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #10 on: Oct 29th, 2007, 7:52pm »

Yes indeed, welcome to the Forum Chris.
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
chrisw
Full Member


member is offline

Avatar




PM


Posts: 14
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #11 on: Nov 1st, 2007, 6:38pm »

well just an update on progress,we finished the first rotax 103 yesterday,ran it on full load for 3/4 hr,basically till the two lorry batts running it went flat.it produced correct voltage and freq,one snag was that the main capacitor inside blew up half way through the test,so we built a new one using modern bits,that will last another 40 yrs hopefully.well it has now gone for painting in our sprayshop and will be ready for refitting soon.would post pictures but don't know how on this site,please advise.if anyone needs pictures of the inside of rotax inverters i have many of types 108,112,100b,103a,drop me a line anyway.post again soon,chris.
User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #12 on: Nov 1st, 2007, 7:41pm »

Chris, send the photos direct to me via email at buccaneers2b@btinternet.com and I will get them uploaded on your behalf.
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
buccaneer01
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 127
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #13 on: Nov 1st, 2007, 11:05pm »

Good to see the old Sea vixen is getting some attention! Best wishes for the project!
User IP Logged

Long live the Buccaneer
Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #14 on: Nov 2nd, 2007, 6:40pm »

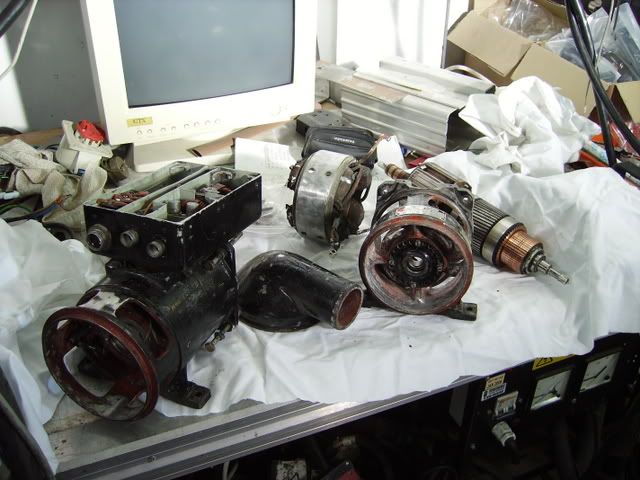

Here are the initial images that Chris sent me of the Rotax 103.

User Image

User Image
