xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #90 on: Apr 7th, 2008, 6:02pm »

A photo from Matt showing the undamaged Magnetic Start Unit (contactor to me and you), also the White wire in the centre of image is the burnt out one from the matching unit.

User Image
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
chrisw
Full Member


member is offline

Avatar




PM


Posts: 14
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #91 on: Apr 8th, 2008, 5:17pm »

hi just to say that if you need help with inverters timbo let me know what the canberra has in it as in rotax i08,103 etc and we can go from there.myself and steve have refurbed 5 inverters now to working order from totally rusted solid and 1 which had gone on fire so getting used to big jobs with them.main thing is is remember what wires go where and also oriantation is important,as if the brushes do not go back in the right order,as in you can adjust position when its screwed in.if you get it wrong it will glow red hot and smoke like hell,trust me on this.anyway drop me a line if you get stuck.
User IP Logged

TT18Timbo
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 123
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #92 on: Apr 8th, 2008, 9:01pm »

Thanks very much chris, I'm planning on having a look at them on my next visit to '126. Can't remember which model inverters the TT18 uses off the top of my head (T4 uses 2 100A's, a 108 and a single E221 static - might be same for TT18 - our PR9's had about 10 of the darn things!)), will find out when I see them though I guess!
User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #93 on: Apr 11th, 2008, 09:28am »

A message from Matt.

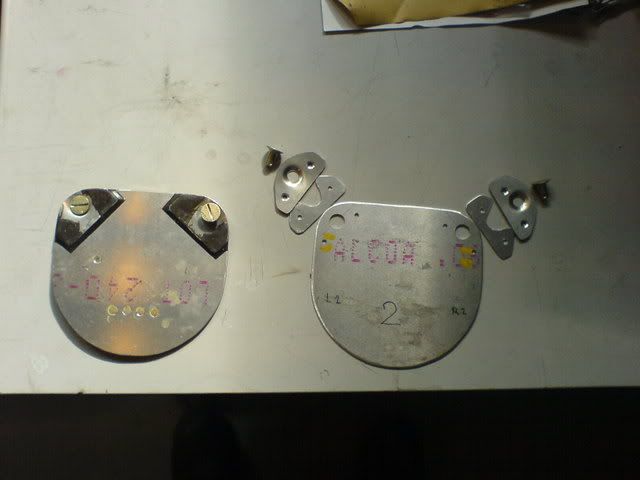

"This is what i've spent my spare time in work making
not bad for a gash job with some off cuts there off to get some paint now prior to me spraying up the main panel they are fitted too."

"However i think the fumes that would create in the hanger would give the game away so i'll have to wait for a dry day outside."

Matt.

User Image
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #94 on: Apr 22nd, 2008, 5:09pm »

I got bored and ended up re-painting the previous engine door in the correct shade of extra dark sea grey (which isn't that dark in reality) and now with a grand total of 5 headsets donated from various sorces we're all set for proper ground runs, this weekends work will concentrate on soaking the trunnion and seeing is we've fixed the elecy problem
and doing it whilst being watched by those visiting the lightnings
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #95 on: Apr 27th, 2008, 7:53pm »

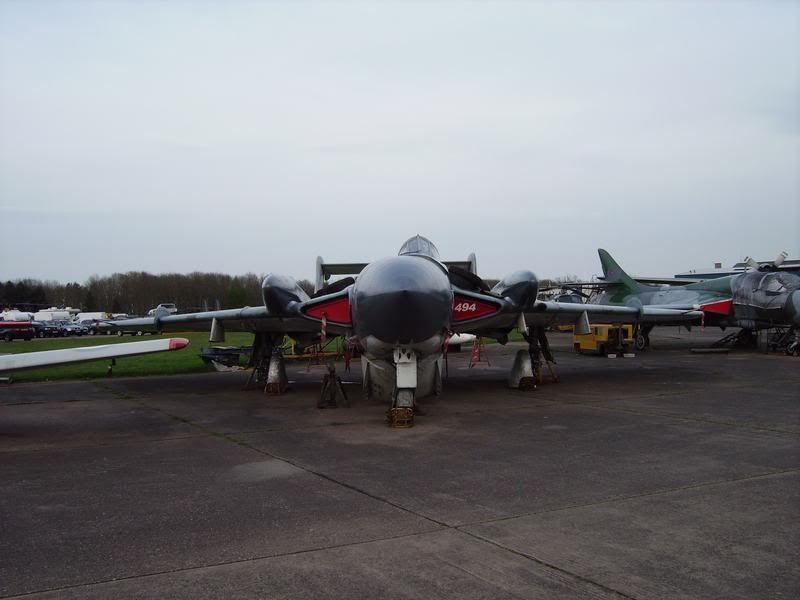

Here’s a few pictures from Matt showing the new coat of paint that is progressively being applied to the Sea Vixen…

User Image

User Image

Looking good!
User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #96 on: Apr 27th, 2008, 8:27pm »

I take it that you are rollering it on?
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
buccaneer01
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 127
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #97 on: Apr 28th, 2008, 12:59am »

From the pics she will look pretty spiff when finished.. How close is she to becoming live electrically once again?
User IP Logged

Long live the Buccaneer
matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #98 on: Apr 28th, 2008, 5:02pm »

The engine generator on the stbd side came out on saturday (i'll post a photo later) it's a big b**tard and could have taken our toes off we'll be definately putting it back in with a trolley jack

we didn't get time to put the control box back in but we'll try it in two weeks, with the spare invertor that dave webb kindly gave us we intend to build a test rig to check everything out un-installed before doing so on the jet

The painting bug has bitten me at the mo and hopefully if the weather hold we'll make a big dent into the repainting (any volunteers welcome as we intend to make a weekend of it in 2 weeks time
User IP Logged

XV867
God


member is offline

Avatar




PM

Gender: Male
Posts: 247
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #99 on: Apr 28th, 2008, 5:38pm »

Looking good Matt ..keep up the good work.

XV867.
User IP Logged

http://www.highlandaviationmuseum.co.uk/index.htm
Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #100 on: Apr 28th, 2008, 7:46pm »

A couple more from Matt..

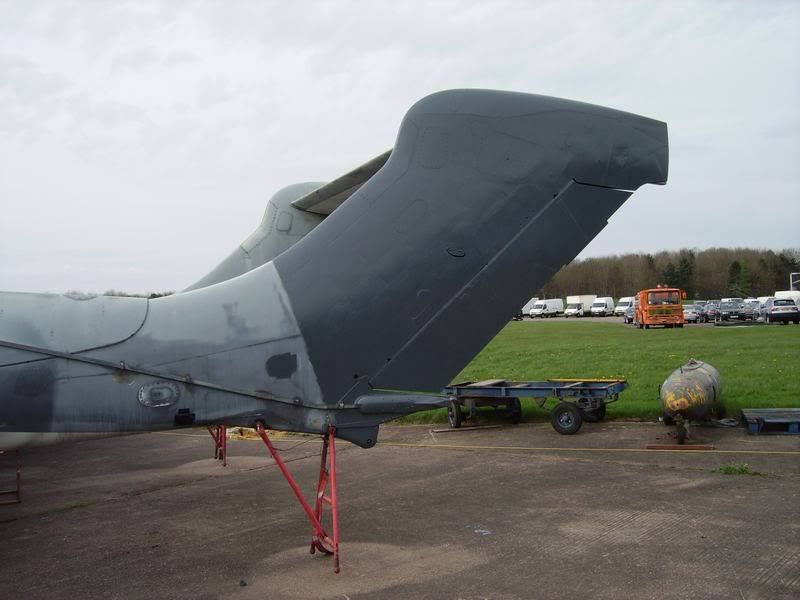

Painted port boom…
User Image

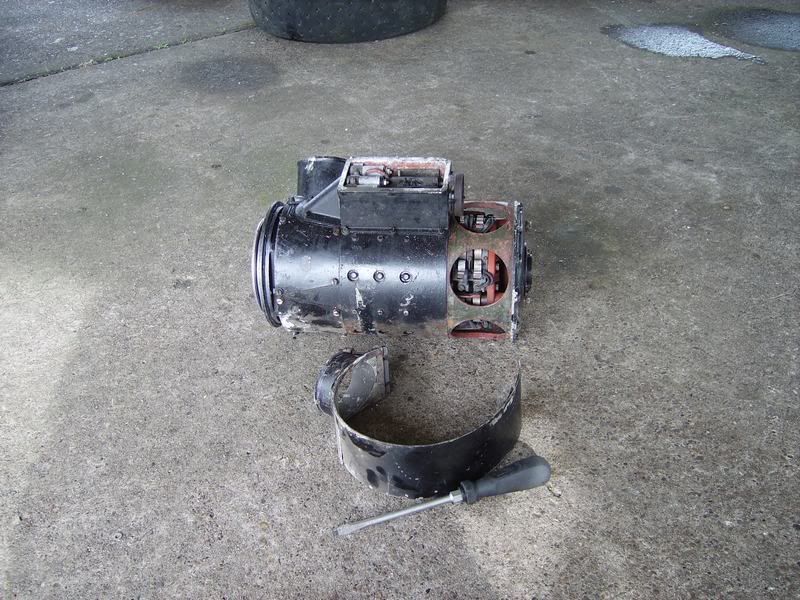

Generator…
User Image
User IP Logged

matt
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 163
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #101 on: May 1st, 2008, 7:54pm »

Anyone fancy giving us a hand to paint on 10th/11th is more than welcome, bout time the vixen wasn't the poor relation at the open day
User IP Logged

Buccsociety
Administrator


member is offline

Avatar




PM

Gender: Male
Posts: 830
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #102 on: May 1st, 2008, 8:41pm »

A quick one from Matt.

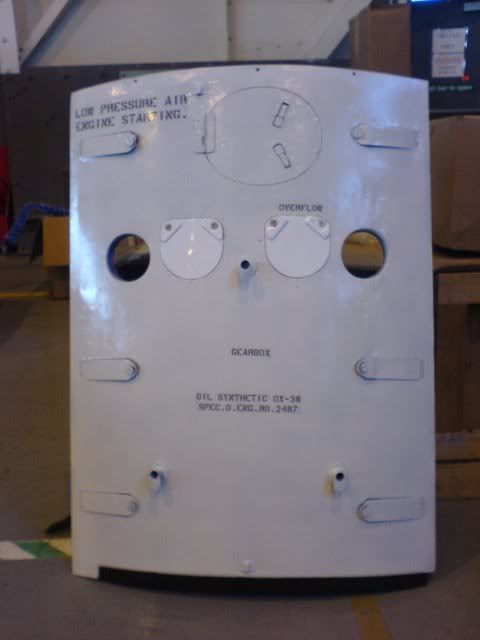

The white one with the newly made access doors.
User Image

and the grey one, in the correct grey and with the door hook cover replaced with a new piece.
User Image
User IP Logged

User Image
Nigel J Goodall - Blackburn Buccaneer Society - Coordinator.
chrisw
Full Member


member is offline

Avatar




PM


Posts: 14
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #103 on: May 3rd, 2008, 08:25am »

hi guys just thought i'd post to let you know that we hope as a team we can make a big push this year to at least make the old girl look nicer and hopefully get some of the systems going.at the moment when people see her because of the worn out state of the paint and some areas of damage corrosion it looks like nothing is going on.i would like to assure everyone that lots of work goes on behind the scenes and we hope to start seeing some results soon.the repaint will continue to try and get her looking nice for the open day at brunty.if we can lift the engine that will be a big step to us,as the electrics are moving forward although slowly.she now wears a set of refurbed nav lights in the wing tips with new wiring,we have refurbed cracker boxes to go in when the replacement engine goes back also.as i have come to learn when starting on this project information is the key having the right stuff and the knowlegde is key.so if anyone knows of more vixen ap's or manuals floating around please let us know,it all helps.
User IP Logged

sailor
Senior Member


member is offline

Avatar




PM


Posts: 76
xx Re: Sea Vixen FAW.2 XJ494 - Progress
« Reply #104 on: May 3rd, 2008, 08:43am »

well done on your restoration of the Sea Vixen what sqdn colours/carrier markings will she have when in finish paint? ps hope you dont have to put 2 dustbins on the booms like we did onboard for leaks and vents wink cool buccs tops vixen a close second grin
