xx Main undercarriage retraction
« Thread started on: Jan 2nd, 2011, 4:58pm »

Hello all. I'm hoping someone can help me. I'm making an rc model of the buccaneer and have being trying to figure out how the main gear detracts I went to yeovilton to see if j could work it out and I'm still stumped. I can't work out how the main leg fits in the wheel well.

Can anyone help
Richard
User IP Logged

jahooligan
Junior Member


member is offline

Avatar




PM


Posts: 7
xx Re: Main undercarriage retraction
« Reply #1 on: Jan 2nd, 2011, 5:16pm »

yes theres the rub
when retracting the undercarridge on buccs the leg retracts up vertical then sideways ie theres a retraction jack in the top of the liquid spring above the wheel
User IP Logged

Rhilluk
New Member


member is offline

Avatar




PM


Posts: 4
xx Re: Main undercarriage retraction
« Reply #2 on: Jan 2nd, 2011, 5:20pm »

I see. So the leg shortens itself using the shock absorber.
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Main undercarriage retraction
« Reply #3 on: Jan 2nd, 2011, 7:22pm »

Hi Richard,

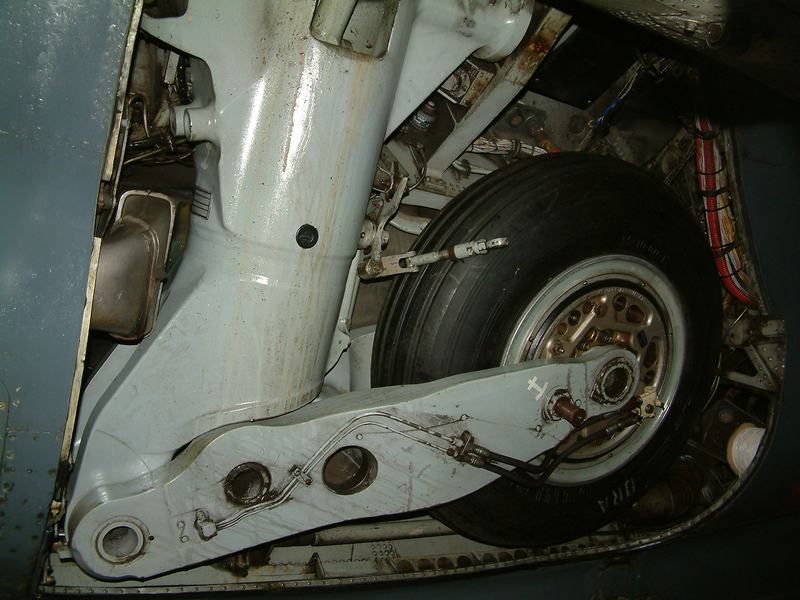

There is a shortening mechanism mounted on top of the main legs which pulls the shock absorbers upwards upon retraction.

Hopefully these photos and diagram will help...

User Image

User Image

User Image

User Image
« Last Edit: Jan 2nd, 2011, 7:25pm by Plazz » User IP Logged

Rhilluk
New Member


member is offline

Avatar




PM


Posts: 4
xx Re: Main undercarriage retraction
« Reply #4 on: Jan 5th, 2011, 3:42pm »

They're some brilliant photos there, and the diagrams really help.

Where did you get the diagrams from
User IP Logged

Plazz
Moderator


member is offline

Avatar




PM

Gender: Male
Posts: 448
xx Re: Main undercarriage retraction
« Reply #5 on: Jan 6th, 2011, 07:38am »

The diagram is from one of the many Buccaneer APís that I have in my collection.
APís (Air Publication) are the manuals used to service/repair the aircraft etc.

If you need a diagram detailing some area of the Buccaneer, chances are that I (or someone on this board) will have it!
« Last Edit: Jan 6th, 2011, 07:39am by Plazz » User IP Logged

Rhilluk
New Member


member is offline

Avatar




PM


Posts: 4
xx Re: Main undercarriage retraction
« Reply #6 on: Jan 7th, 2011, 7:40pm »

Are you able to buy these Air Publications.

What I'm mainly after at the moment is a three view drawing with decent profiles of the fuselage.
User IP Logged

Goosey
Senior Member


member is offline

Avatar




PM

Gender: Male
Posts: 61
xx Re: Main undercarriage retraction
« Reply #7 on: Jan 7th, 2011, 10:39pm »

Rhilluk if you look on e-bay item number 370472114121 you might find what you are looking for at a buy it now price of £6.99 hope this is of some help
User IP Logged
